Brake Pedal box (1" master cylinder)

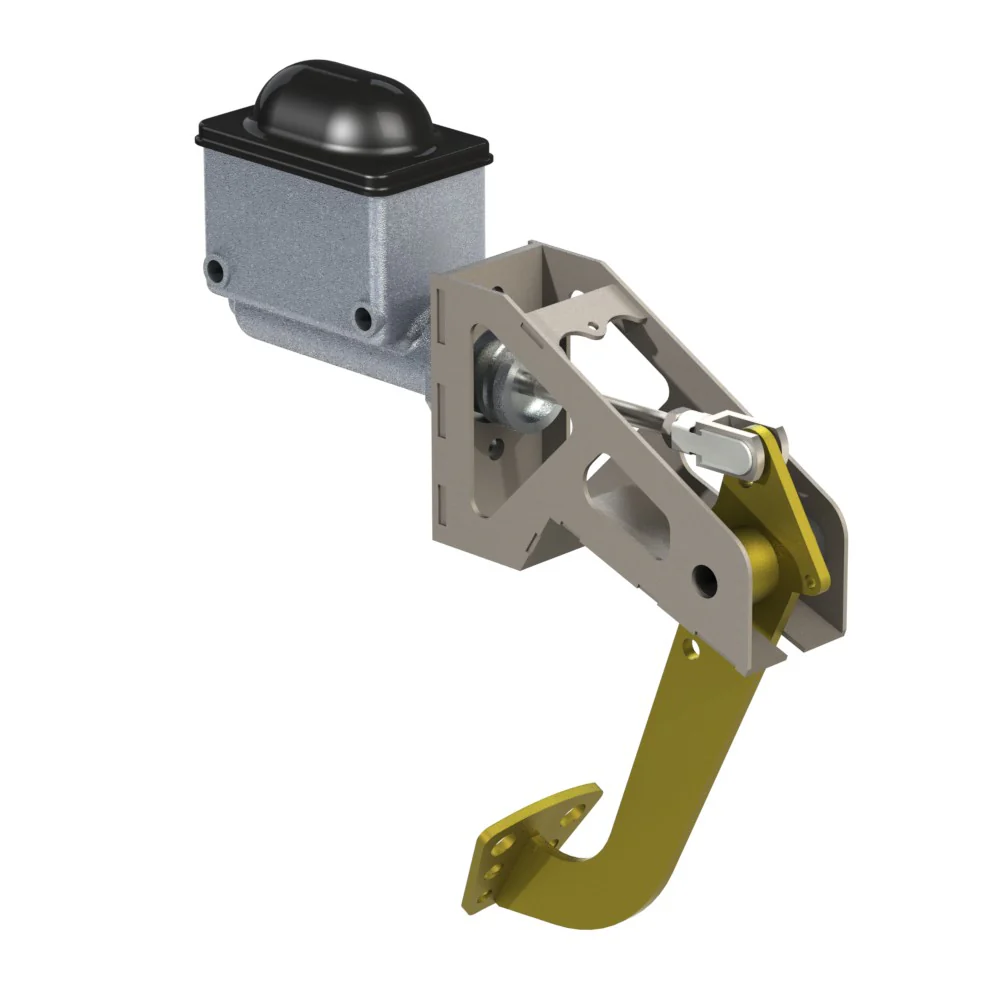

Pedal Box complete with Pedal, Pushrod, Clevis, 1” Master Cylinder.

The 1" master cylinder is only necessary when operating two Wilwood 4-piston calipers e.g. X2 front brakes or CV2 outboard brakes. The 1" master cylinder has a 1/8" NPT outlet - an adapter is required when fitting AN-3 hose to this master cylinder. Banjo bolts cannot be fitted to this master cylinder.

NOTE: We run separate pedal boxes for front & rear brakes mounted side by side. Both pedals can be pressed together and by rocking your foot you can control front & rear braking.

Part no. PEDBOX-6
