The Piranha III Plans (Digital Download)

Full construction plans for the Piranha III buggy, including the S1 rear suspension.

Completely overhauled design
S1 rear driveline and suspension

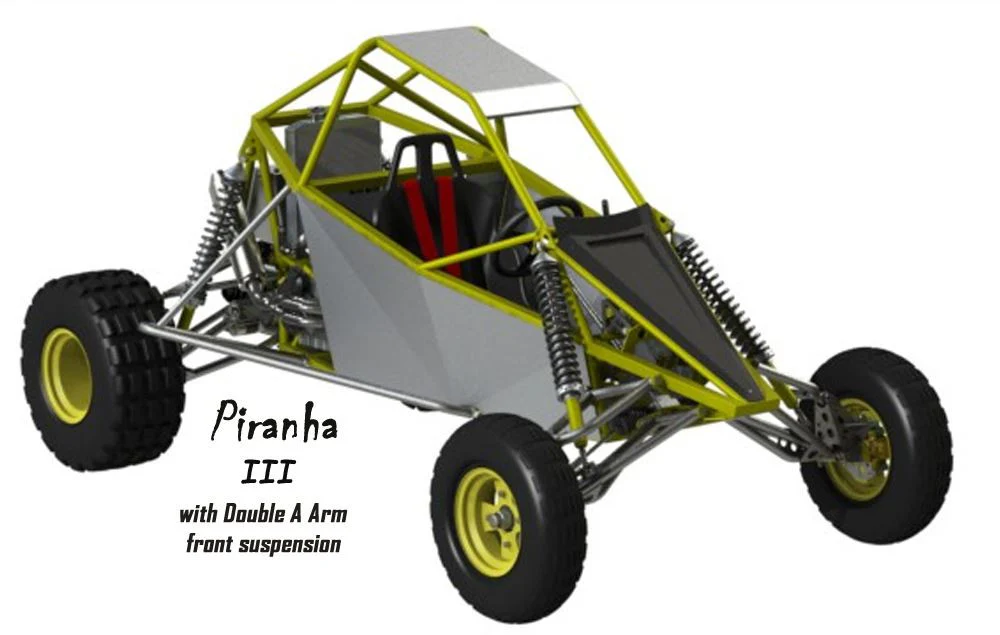

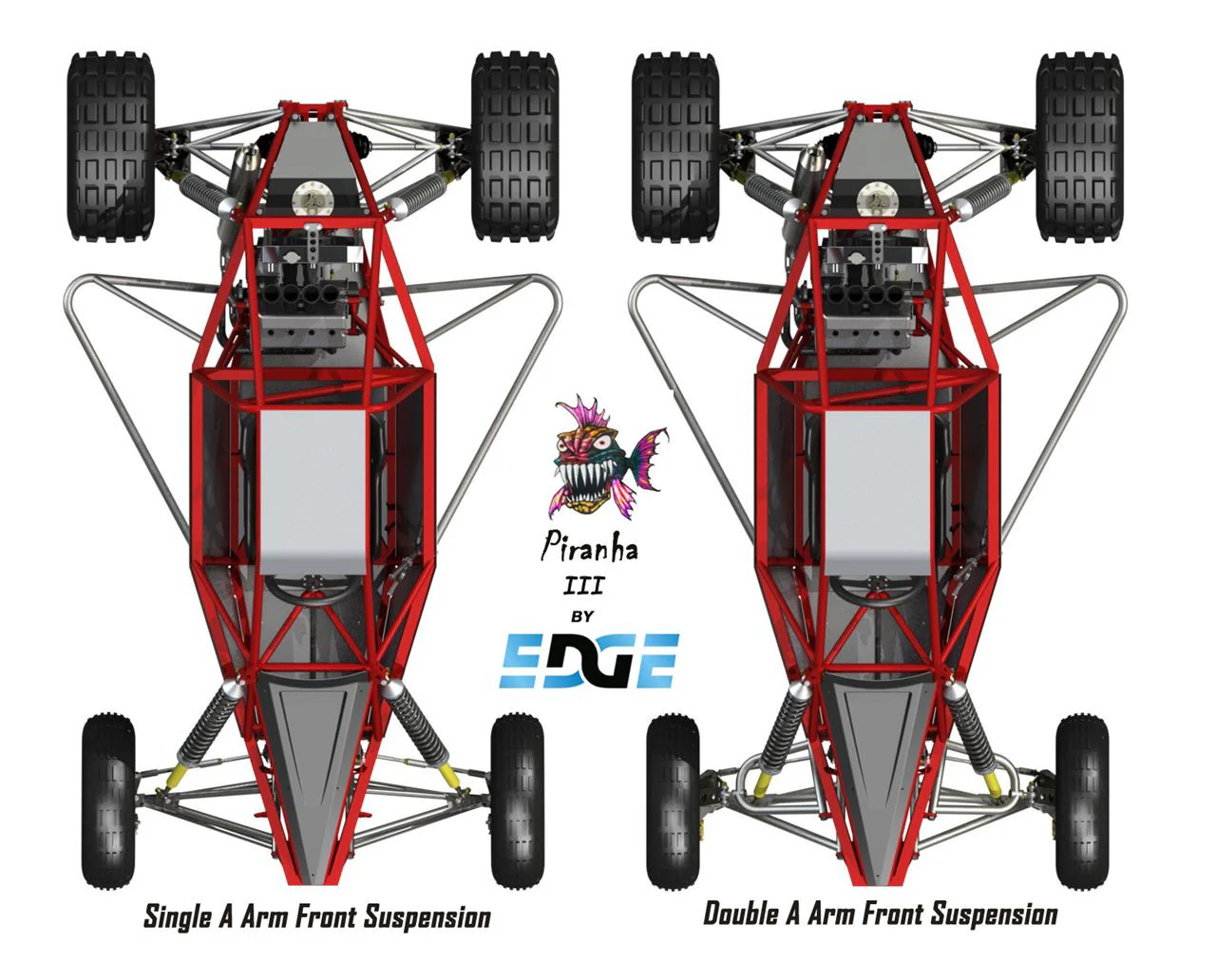

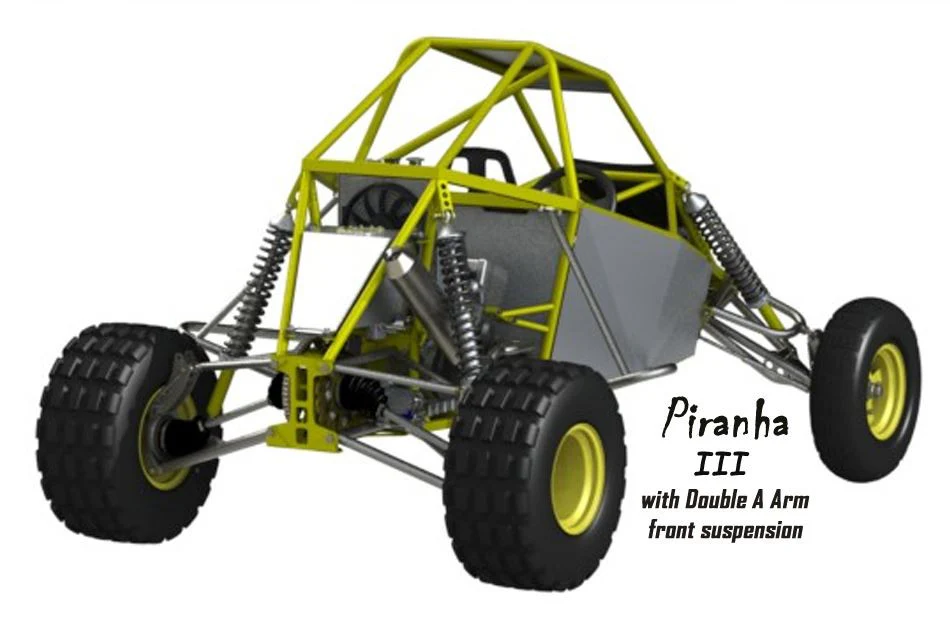

Double A Arm front suspension
0-100kph in 5.5 seconds

These plans are in a digital (PDF) file available for immediate download.

Keep Your Plans Up To Date

The plans for sale above are the latest edition of the Piranha III plans. For customers who purchased earlier Piranha III plans the following amendments bring older plans up to date with extra building tips and revised details.

S1 Housing Masking for Powder Coating
[Download amendment] - 11th October 2016

Front Shock Mounts
[Download amendment]  -  20th December 2016

Pedal Mounts
[Download amendment]  -  5th January 2017

S1 Lower Arms
[Download amendment] - 12th January 2017

We recommend customers check back periodically to ensure you benefit from the latest available files.
